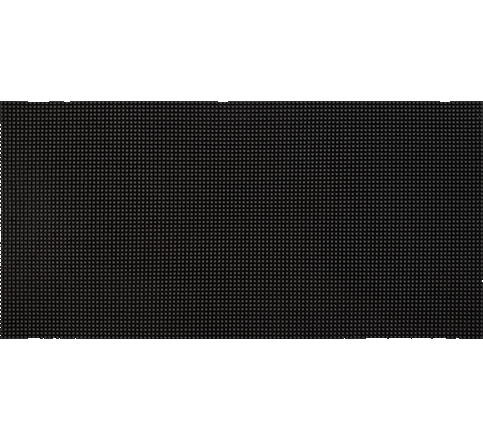

LED柔性屏

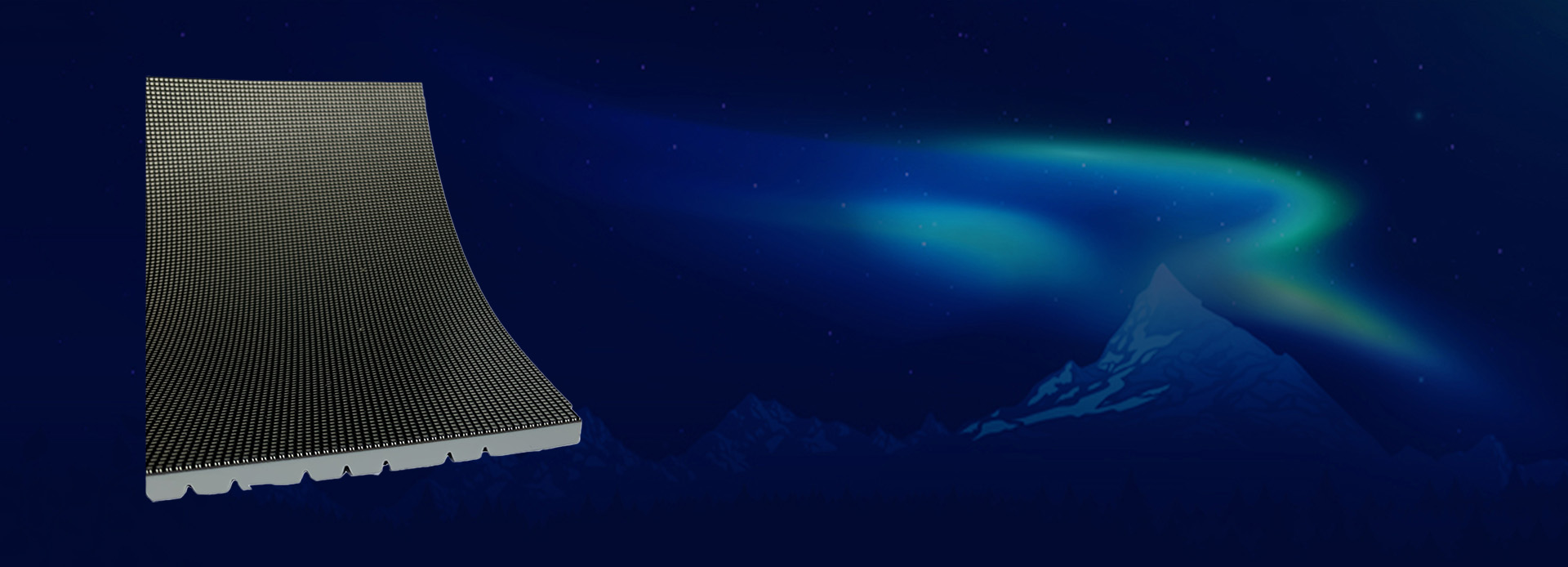

- LED柔性屏、LED球形屏，是一种适用于大型室内视频墙等模块拼接屏，显示新颖独特。
- 可做到全屏曲面无缝拼接组成（根据项目需要有多种不同的像素间距可选）。
- 单屏大小可定制，防潮、简易拆卸维护，结构牢固，不易损坏。
| 项目 | ZR-BF-P1.88 | ZR-BF-P2 | ZR-BF-P2.5 | ZR-BF-P3 | ZR-BF-P4 |
| 像素间距 | 1.88mm | 2mm | 2.5mm | 3mm | 4mm |
| 像素密度 | 282933dot/m2 | 250000dot/m2 | 160000dot/m2 | 111111dot/m2 | 62500dot/m2 |
| 模组电源 | 25W | 24W | 20W | 16W | 20W |
| 模组尺寸 | 320X160mm | 320X160mm | 320X160mm | 320X160mm | 320X160mm |
| 模组分辨率 | 170X85dot | 160X80dot | 128X64dot | 104X52dot | 80X40dot |
| 扫描 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| 模块重量 | 0.32kg | 0.30kg | 0.28kg | 0.26kg | 0.24kg |
| LED型号 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| 亮度 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 |
| 刷新率 | 3840Hz | 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
| 工作电压 | 4.2-5V | 4.2-5V | 4.2-5V | 4.2-5V | 4.2-5V |
| 额定电流 | 5A | 4.8A | 3.8A | 3.2A | 4A |
| 厚度 | 8.6mm | 8.6mm | 8.6mm | 8.6mm | 8.6mm |
| 项目 | ZR-SF-P1.25 | ZR-SF-P1.579 | ZR-SF-P1.667 | ZR-SF-P1.875 | ZR-SF-P2 | ZR-SF-P2.5 | ZR-SF-P3 |
| 像素间距 | 1.25mm | 1.579mm | 1.667mm | 1.875mm | 2mm | 2.5mm | 3mm |
| 像素密度 | 640000dot/m2 | 400689dot/m2 | 358801dot/m2 | 284444dot/m2 | 250000dot/m2 | 160000dot/m2 | 111111dot/m2 |
| 模组电源 | 19W | 17.5W | 16W | 19W | 18W | 14W | 12.5W |
| 模组尺寸 | 240X120mm | 240X120mm | 240X120mm | 240X120mm | 240X120mm | 240X120mm | 240X120mm |
| 模组分辨率 | 192X96dot | 152X76dot | 144X72dot | 128X64dot | 120X60dot | 96X48dot | 80X40dot |
| 扫描 | 1/48 | 1/38 | 1/36 | 1/32 | 1/30 | 1/24 | 1/20 |
| 模块重量 | 0.25kg | 0.23kg | 0.22kg | 0.2kg | 0.19kg | 0.185kg | 0.175kg |
| LED型号 | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| 亮度 | 600-700cd/m2 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 | 700-900cd/m2 |
| 刷新率 | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
| 工作电压 | 4.2-5V | 4.2-5V | 4.2-5V | 4.2-5V | 4.2-5V | 4.2-5V | 4.2-5V |
| 额定电流 | 3.8A | 3.2A | 3A | 3.8A | 3.6A | 2.8A | 2.5A |
| 厚度 | 8.6mm | 8.6mm | 8.6mm | 8.6mm | 8.6mm | 8.6mm | 8.6mm |
